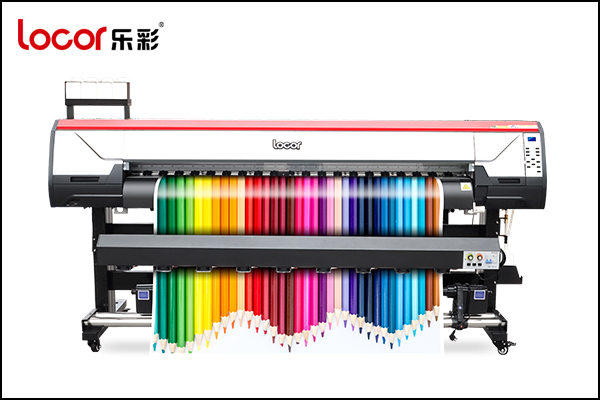

Locor Ultra 6ft 1.8 Eco Solvent Printer with DX5/DX7/DX11 (XP600) print head
date ：2017-8-17 23:22:59hits ：6687author：郑州乐彩
PRODUCT FEATURE：

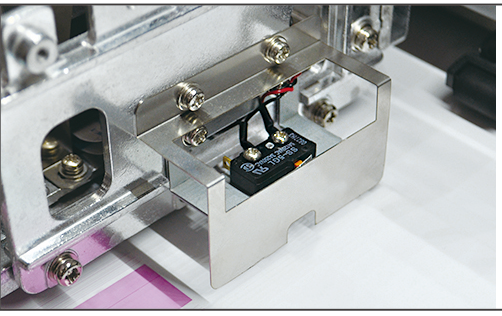

1、Intelligent paper detection system.It can prevent cocking the paper，Automatically suspended，Avoid scratching the print head；Stop printing when the paper runs out .
2、Humanized ink vehicle with＂high／middle／low＂three gears.According to the print material thickness, convenient and quick switch.

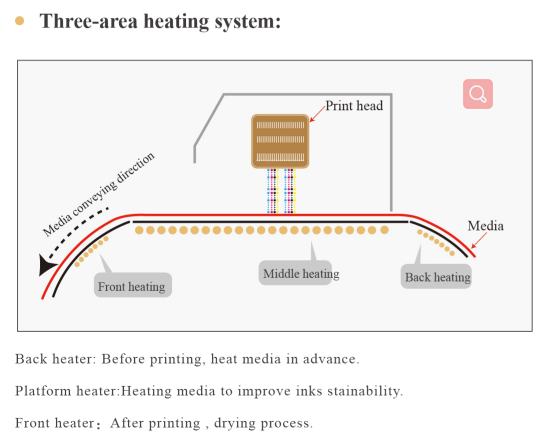

3、Intelligent heating system.If printing stop，close by itself，Ensure security and picture is undamaged when it is unattended.
4、High-speed silent guide rail and bearings.Adopt japanese TCK guide rail,Double sliders and imported bearings，Ensure the printing of high-speed, smooth, accurate, quiet.
5、Wire standardization。Stable、Higer reliability.The wires twine together to avoid electromagnetic interference.
| Specification | |||||||||||||||
| Model | Ultra-1900plus | Ultra-1901plus | |||||||||||||
| Print technology | |||||||||||||||

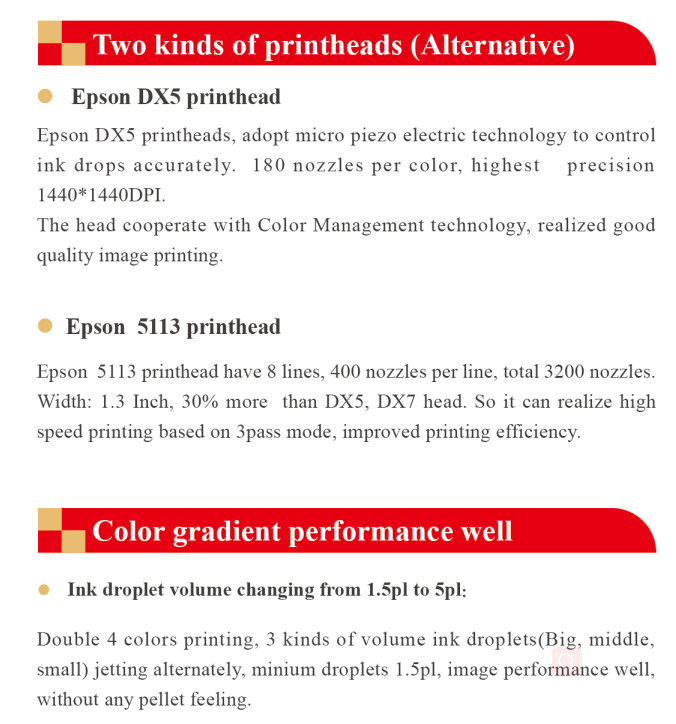

| Printhead Type | Epson DX5 | Epson 5113 | |||||||||||||
| Printhead Number | Two | Two | |||||||||||||
| Print Direction | Bir-direction/One direction | Bir-direction/One direction | |||||||||||||
| Printhead height | 2mm-3mm | 2mm-3mm | |||||||||||||
| Cleaning | Automatically cleaning Flash,Moisturized | Automatically cleaning Flash,Moisturized | |||||||||||||
| Print speed | |||||||||||||||
| Production 3pass | 43.8㎡/h | 61.8㎡/h | |||||||||||||
| Precision 4pass | 33.1㎡/h | 47.1㎡/h | |||||||||||||
| High quality 6pass | 22.5㎡/h | 32.1㎡/h | |||||||||||||
| Ink Supply system | |||||||||||||||
| Type | Eco solvent ink/Water based ink | Water based ink/dye sublimation ink | |||||||||||||
| Color | Four color （C/M/Y/K) | Four color （C/M/Y/K) | |||||||||||||
| Ink tank capacity | 1500ml/Color | 1500ml/Color | |||||||||||||
| Ink supply pattern | Continous Negative pressure ink supply system | Continous Negative pressure ink supply system | |||||||||||||
| Media | |||||||||||||||
| Max Print size | 1860mm | 1860mm | |||||||||||||
| Print Types | photopaper，Cavas，Car sticket，Reflecting materials，PVC film，Sublimation paper | photopaper，Cavas，Car sticket，Reflecting materials，PVC film，Sublimation paper | |||||||||||||
| Max weight | 40Kg（below） | 40Kg（below） | |||||||||||||
| Configuration | |||||||||||||||
| Take up system | Standard | Standard | |||||||||||||
| Heating system | Embedded intelligent tri-stage heating control system（Front/Middle/Back） | Embedded intelligent tri-stage heating control system | |||||||||||||
| Extermal Dryer | Intelligent Synchronous drying fan system | Intelligent Synchronous drying fan system | |||||||||||||
| Operation | |||||||||||||||
| Language | English/Chinese | English/Chinese | |||||||||||||
| PC System | Windows XP/Win 7 | Windows XP/Win 7 | |||||||||||||
| Environment | Temperature：18-25℃ Humidity：35-65RH | Temperature：18-25℃ Humidity：35-65RH | |||||||||||||
| Printing | |||||||||||||||
| Print Interface | USB | USB | |||||||||||||
| RIP software | Maintop/Photoprint/Wasatch | Maintop/Photoprint/Wasatch | |||||||||||||
| Other | |||||||||||||||
| Power supply | AC-220V,50Hz/60Hz | AC-220V,50Hz/60Hz | |||||||||||||
| Power rate（W) | Standy power 32W，Max power 1500W | Standy power 32W，Max power 1500W | |||||||||||||
| Noises | Standy<32dp；Working<65dp | Standy<32dp；Working<65dp | |||||||||||||
| Packing size（L*W*H) | Body package：2950mm*760mm*740mm | Body package：2950mm*760mm*740mm | |||||||||||||
| Legs package：2400mm*500mm*520mm | Legs package：2400mm*500mm*520mm | ||||||||||||||
| N.W（kg) | 250kg | 250kg | |||||||||||||
| Machine size（L*W*H) | 2820mmx945mmx1440mm | 2820mmx945mmx1520mm | |||||||||||||
| G.W（kg) | 335kg | 335kg | |||||||||||||
 |
